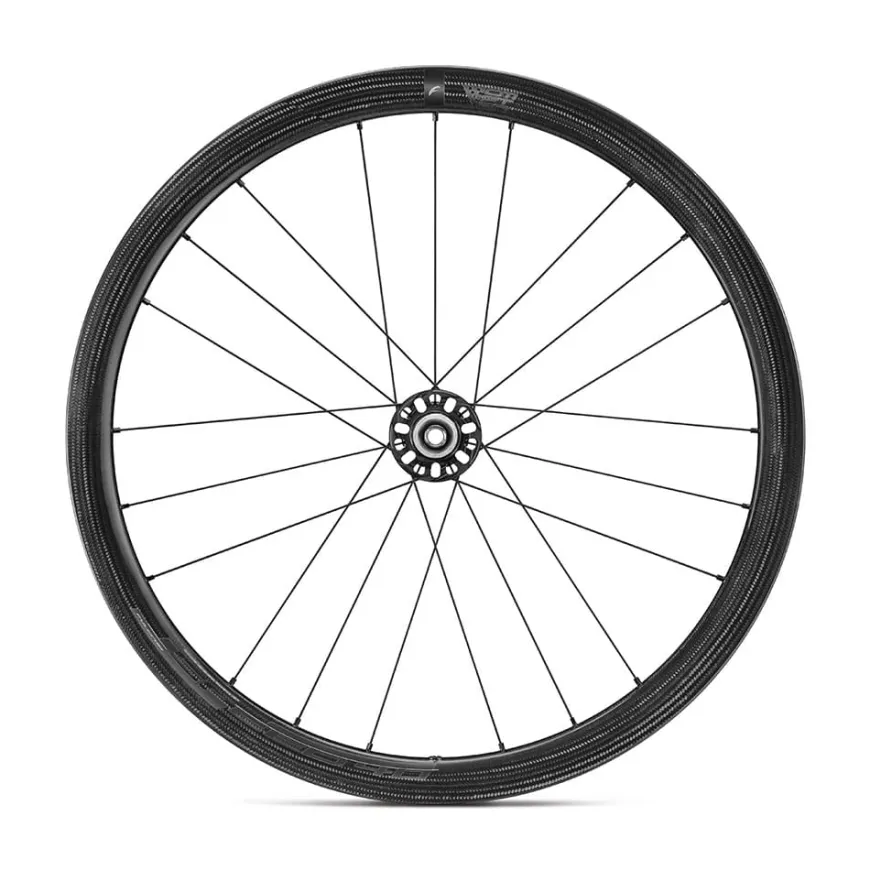

Fulcrum Speed 40 CMPTZN Disc Wielset Shimano BLACK

FULCRUM SPEED 40 DB DISC WHEELSET
The SPEED 40 DB is a top-end, full-carbon racing wheelset made specifically for disc brake use.
2-Way Fit technology: compatible with both clincher or tubeless tires.
The inner width of the rim measures 19mm and the set weight is only 1470g.
USB Ceramic hub bearings and Carbon front hub body included!

While the entire range of Fulcrum wheels can boast adding #fulcrumfast performance to any frame, the wheels under the SPEED moniker are
those that are capable of making those same frames #fulcrumfastest.
The SPEED wheels, since their inception, have been developed in order to represent the maximum of performance technology that the Fulcrum
engineers can produce in order to satisfy the demands of even the most demanding professional rider.

First introduced in tubular format for rim brakes, for those same professional riders,
the SPEED family has grown to offer a wide variety of solutions as top performance should not be limited to only one type of rider
with one type of ride. The latest in this long line of innovations comes in the form of perhaps the most versatile and
certainly most modern solution in the prestigious history of the SPEED range: SPEED 40 DB.

The newest member of the SPEED family is a fantastic example of a performance
offering that takes into account the future of road performance design.
The SPEED 40 DB is a top-end, full-carbon racing wheelset (as its name denotes) made specifi cally for disc brake use.
However, the carbon fi ber rim with twill carbon fi nishing brings forth the lion’s share of the novelties associated with the new wheelset. By incorporating Fulcrum’s
2-Way Fit technology this new model is perfectly compatible with both clincher or tubeless tires.

The undrilled carbon fiber rim production method allows for not only a perfect structure for tubeless or clincher
tire choices (as it is void of any hole other than that of the valve) but makes for a sturdier, stronger structure capable
of withstanding even the toughest racing situations. Versatility of tire choice is coupled with a
modern, wider rim in order to better adapt to the larger tire formats that are increasingly popular amongst not only
amateurs but also the professional riders. The inner width of the rim measures 19mm, thus allowing
the tire (from 23 mm or larger) to take on an extremely aerodynamic shape in relation to the highly
aerodynamic 40mm rim whose sophisticated shape reaches a maximum width of 26.5mm.

As a top performance racing wheelset its must be effi cient in a 360 degree manner and as such,
in addition to aerodynamic qualities it must be both lightweight and smooth rolling. Extremely efficient USB ceramic
bearings reduce rolling resistance to a minimum and keep the rider moving forward without internal friction holding him or her back.
Those same bearings are housed in a carbon fiber front hub and an alloy rear hub, specifically drilled to eliminate
superfluous material, in order to keep the overall weight to a highly respectable low weight of 1470 grams for the pair.

As with all previous models of Fulcrum SPEED wheels the SPEED 40 DB is a fantastic solution for a specific use
for those looking for a specific outcome: winning races. Fulcrum SPEED performance meets both disc brake specific design
and modern tire compatibility advancements together with tried, tested and universally lauded Fulcrum construction.

TECHNOLOGY

TYRE TYPE: 2-Way Fit (for clincher and tubeless)

WEIGHT: 1470 g

DISCIPLINE: Road/Triathlon ASTM category 2

RIM MATERIAL: Full carbon, Twill carbon fiber finishing

RIM WIDTH: 26.5 mm

INNER CHANNEL: 19 mm

RIM HEIGHT: 40 mm

DISC BRAKES MOUNT: AFS

SPOKES

FRONT: 21, Two-to-one (14 left – 7 right)

REAR 21; Two-to-one (7 left – 14 right)

MATERIAL: Stainless Steel

PROFILE TECH: Rounded, Straigh pull

NIPPLES

MATERIAL: Aluminum

HUBS

FRONT AXLE COMPATIBILITY: HH12 – 100

REAR AXLE COMPATIBILITY: HH12 – 142

FRONT: Carbon/Aluminum, Oversized Flange

REAR: Aluminum/Aluminum, Oversized Flange

BEARINGS USB ceramic bearings, Adjustable Cup and Cones bearing system

OTHERS: Plasma treated HG freewheel, Aluminum Axle

WEIGHT LIMIT: 109 kg (Cyclist)

BODY OPTIONS: SHIMANO HG11, Campy, SRAM XDR
